AMBIENT DUST COLLECTOR

24VT AMBIENT DUST COLLECTOR

24VT AMBIENT DUST COLLECTOR

Voltage: 208v, 230v, 480v, 575v

Motor: 5 HP premium grade

AMPs-FLA: 208-230v (13.7-12.6), 460v (6.3), 575v (5)

Drive: Belt and pulley system with auto-tensioner

CFM: 8500

Weight: 400 lbs.

Dimensions: 31” L x 82” W x  58” H

Construction: Steel, Aluminum, Bolted, Riveted, Sealed

Finish: White, two-coat power coat

Applications: Clean and circulate, whole shop filtration

Db: 68

Standard Features:

Easy, no-tool filter changes

Balanced/Machined drive assembly parts

Balanced blower

Greaseable bearings with easy-access grease fitting located outside unit

Comes standard with spark arrestors

Many filter options to suit your needs

Easy-hang uni-strut mounting options available

NOTE: this unit can be mounted in the vertical or horizontal position

24VT AMBIENT DUST COLLECTOR



ONE OF OUR MEDIUM SIZED UNITS, BUT AT 8500 CFM AND 4 LARGE INTAKES, IT'S STILL LARGER THAN ANY COMPETITOR IN THE WORLD.

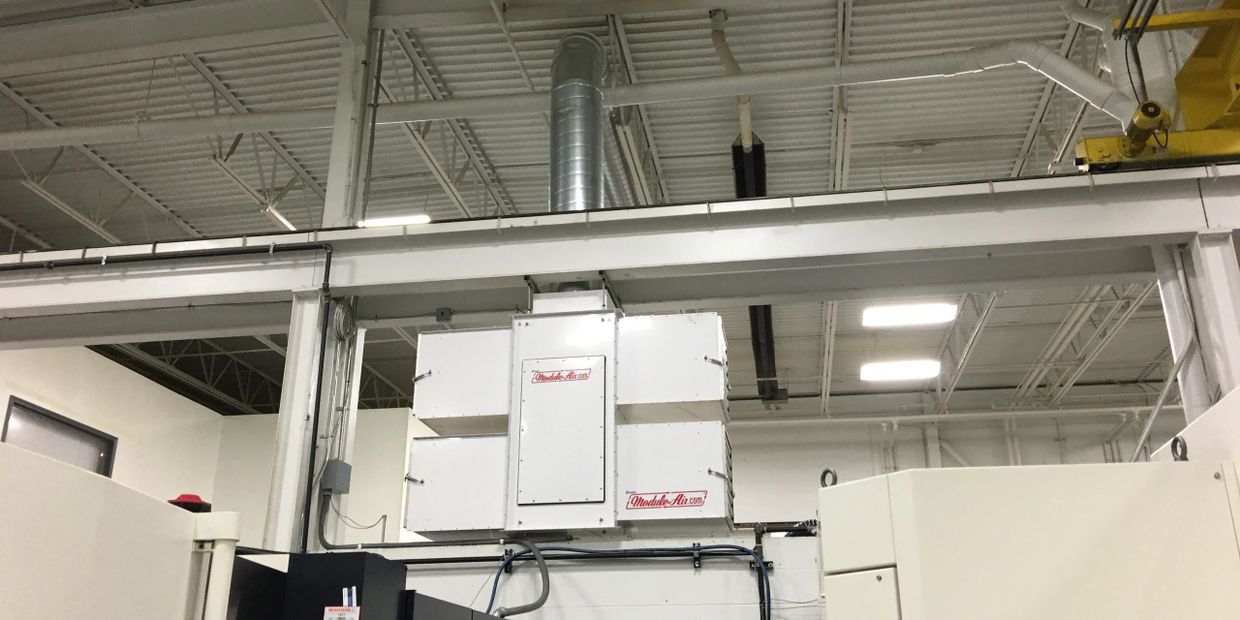

 THIS UNIT IS MOUNTED VERTICAL OR HORIZONTAL AND CAN HAVE VENTED OR PIPED EXHAUST.

These units can be used where the the exhaust is piped away from the unit, creating a local low pressure area around the unit. This forces unwanted particles to the unit and away from people.

For all applications from SILICA and SMOKE to CARDBOARD DUST, THIS UNIT TAKES CARE OF IT!
