OIL MIST COLLECTOR

07 OIL MIST COLLECTOR

07 OIL MIST COLLECTOR SPECIFICATIONS

Voltage: 110v or 220v (single phase)

Motor: 3/4 HP, premium grade

AMPs-FLA: 115v (11.6), 220v (4.5-5.1)

Drive: Direct Drive

CFM: 2000

Weight: 200 lbs.

Dimensions: 34” L x 26” W x  61” H

Construction: Steel, Aluminum, Bolted, Riveted, Sealed

Finish: Powder Coated

Applications: Collect Coolant Mist, Oil, Smoke, Toxic Gasses, and more!

Db: 55

Standard Features:

Vertical or horizontal, direct mount, stands and other mounting kits available

Units come standard with a coalescing filter, 10 cell 95% bag filter, and carbon filter

HEPA filter and housing sold separately

07 OIL MIST COLLECTOR

  THE 07, OUR LARGER OIL MIST COLLECTOR HAS THE BEST PERFORMANCE SPECS IN THE WORLD, WITH ONLY 10 MINUTES OF MAINTENANCE REQUIRED EVERY 6 MONTHS.

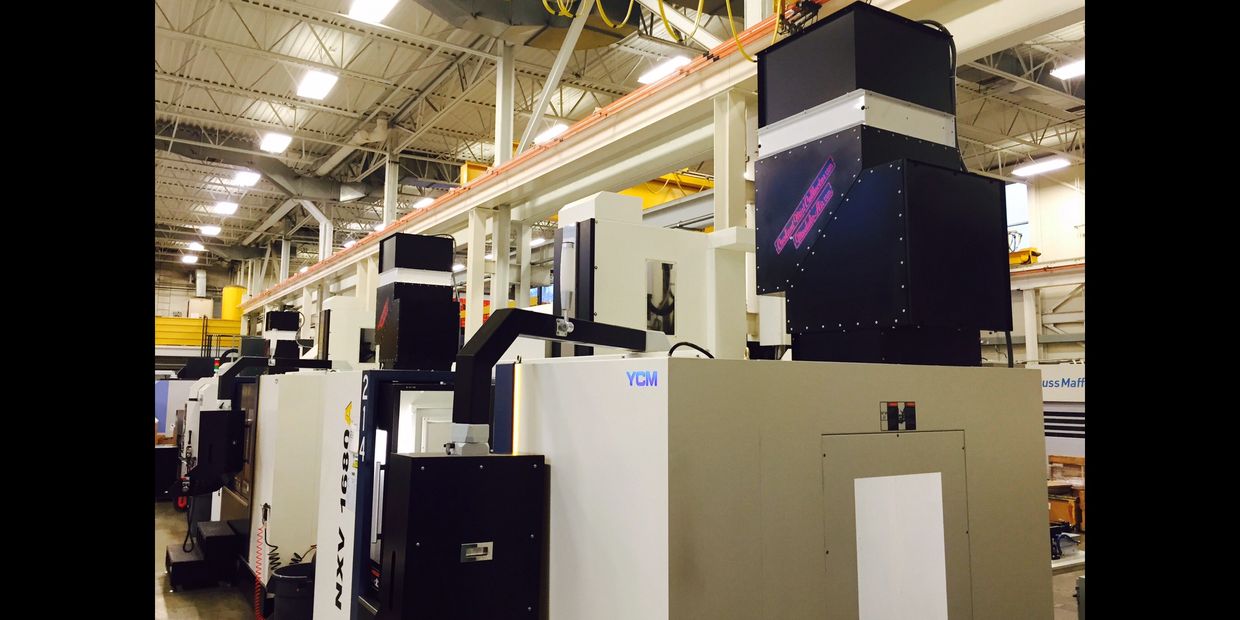

  THESE UNITS CAN BE GANGED IN MULTIPLES, PUT ON STANDS, MOUNTED VERTICAL OR HORIZONTAL, WITH HOSES OR DIRECTLY MOUNTED TO MEET ANY APPLICATION. THIS ALSO MAKES FOR REDUNDANCY IN THE SYSTEM. THE UNIT MAKES ALMOST NO NOISE AND IS RIDICULOUSLY EFFICIENT AND SELF CLEANING.

  WITH A CHANGE TO THE  MEDIA USED INSIDE, THESE UNITS ARE ALSO USED WITH OUR SMALL CYCLONES TO PICKUP HEAVY GRIT OR DUST WITH 95% EFFICIENCY.   PRECISION IN-HOUSE BALANCING OF THE FAN MEANS NO VIBRATION IS TRANSMITTED  TO YOUR MACHINE.

CLICK HERE FOR A BROCHURE
