OIL MIST COLLECTOR

03 OIL MIST COLLECTOR

03 OIL MIST COLLECTOR SPECIFICATIONS

Voltage: 110v or 220v (single phase)

Motor: 3/4 HP, premium grade

AMPs-FLA: 115v (8.7-2.4), 220v (4.1-1.7)

Drive: Direct drive

CFM: 1000

Weight: 120 lbs.

Dimensions: 24” L x 19” W x  50” H

Construction: Steel, Aluminum, Bolted, Riveted, Sealed

Finish: Powder Coated

Applications: Collect Coolant Mist, Oil, Smoke, Toxic Gasses, and more!

Db: 55

Standard Features:

Vertical or horizontal, direct mount, stands and other mounting kits

Units come standard with a coalescing filter, 10 cell 95% bag filter, and carbon filter

HEPA filter and housing sold separately

03 OIL MIST COLLECTOR



THE 03, OUR SMALLER OIL MIST COLLECTOR HAS THE BEST PERFORMANCE SPECS IN THE WORLD, WITH ONLY 10 MINUTES OF MAINTENANCE REQUIRED EVERY 6 MONTHS.

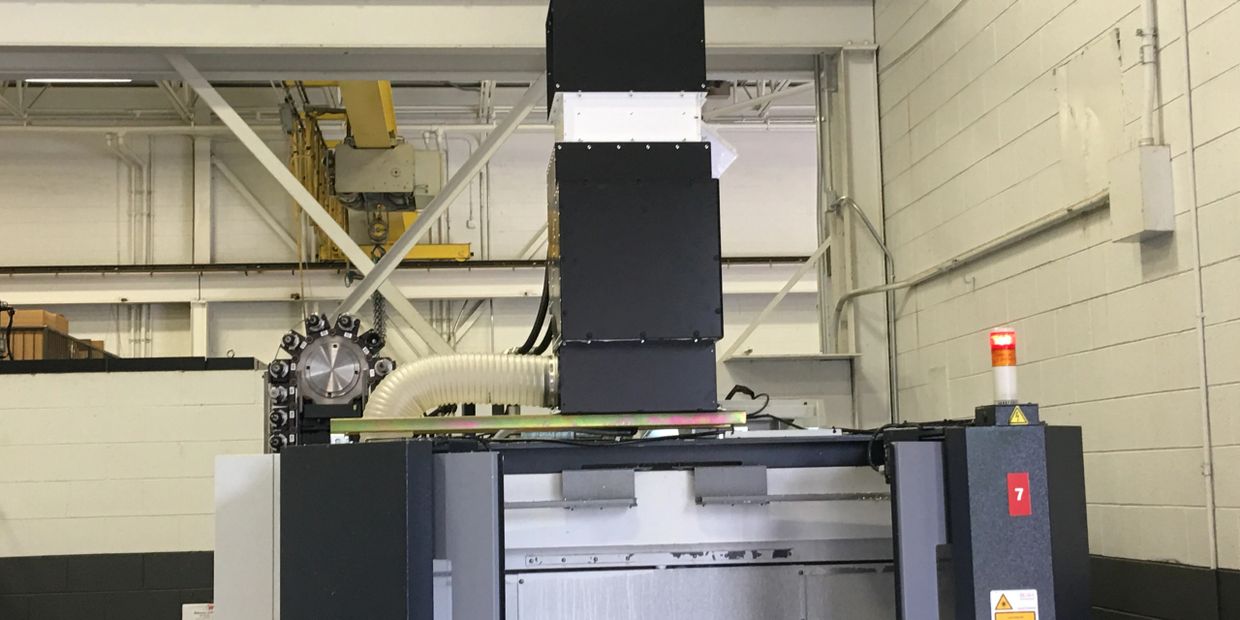

 THESE UNITS CAN BE PUT ON STANDS, MOUNTED VERTICAL OR HORIZONTAL, WITH HOSES OR DIRECTLY MOUNTED TO MEET ANY APPLICATION.  THE UNIT MAKES ALMOST NO NOISE AND IS RIDICULOUSLY EFFICIENT AND SELF CLEANING.

  PRECISION IN-HOUSE BALANCING OF THE FAN MEANS NO VIBRATION IS TRANSMITTED  TO YOUR MACHINE.

CLICK HERE FOR BROCHURE
